Versatile hybrid wide-format inkjet printer
Just like a slender deer moves nimbly through the woods, the Anapurna Ciervo approaches any printing job with great agility – ready for whatever crosses its path. If you are looking for versatility to tackle a wide range of print jobs, the Ciervo will prove a perfect fit for your sign & display printing business.
- Hybrid
- Up to 209 m²/h – 2249 ft²/h*
- Up to 320 cm – 126 in
- CMYKcm + white
* under development
Why the Ciervo is the right beast for you

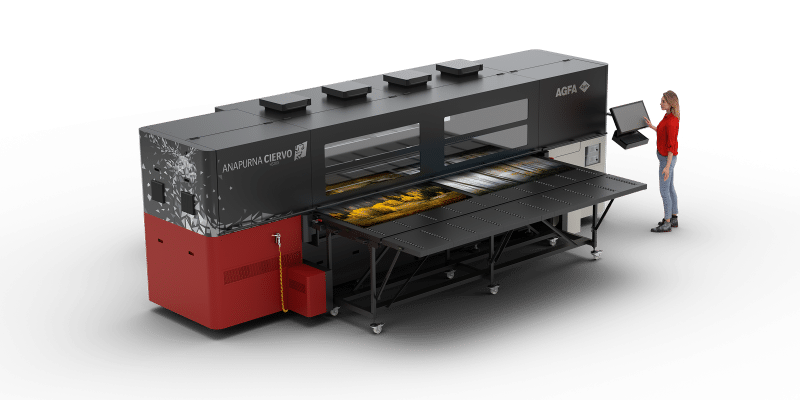

The Anapurna Ciervo H3200 wide-format hybrid printer is designed for sign shops and digital printers looking for a combination of versatility, productivity, and excellent print quality. With a 3.2-meter print width, UV LED curing, and a six-color plus white ink set, this print engine is a perfect fit for a wide range of indoor and outdoor print applications.
- Versatile printer that tackles a wide range of rigid and roll media for indoor and outdoor applications
- Productivity enhanced through efficient continuous board feeding & multiple board printing (up to 4 simultaneously)
- Borderless printing limits post-finishing requirements
- GREENGUARD Gold-certified inks with wide color gamut and exceptional rendering of dark solid tones
- Pre-white, sandwich white and post-white in one run
- Proven technology, based on 20 years of expertise
- Built on an industrial framework tailored for enduring steady workloads
- UV LED technology brings economic and ecological benefits
- Thin Ink Layer technology for lowest ink consumption
- Powered by smart Asanti workflow software
Navigate with agility. Excel in every setting. Anticipate any challenge.
A wide range of applications
The Anapurna Ciervo H3200 revolutionizes your business with unparalleled versatility across a spectrum of applications:
- High-quality prints on uncoated rigid media such as exhibition panels, stage graphics and advertising boards, as well as on roll media like film, vinyl, banners, canvas, and coated textiles
- UV LED lamps broaden the range of printable media to e.g. thin, heat-sensitive foils, as well as PET or microflute.
- Niche products and applications in architectural and interior decoration
- The white ink function lets you print on transparent materials for backlit applications, or use white as a spot color.
Technical Specs
| PRODUCTIVITY | |
| Express Mode Production Mode Standard Mode High Quality Mode |
Up to 130 m²/h (1,399 ft²/h) Up to 66 m²/h (710 ft²/h) Up to 35 m²/h (377 ft²/h) Up to 18 m²/h (194 ft²/h) |
| MEDIA & PRINTING SPECIFICATIONS | |
| Rigid media | |
| Maximum width | 320 cm (10.5 ft) 316 cm (10.3 ft) with borderless printing |
| Maximum length | Supported by 1 rigid roller table: 140 cm (4.59 ft) Supported by 1 rigid roller table + media extension table (default): 320 cm (10.5 ft) |
| Minimum size | A2 landscape (60 x 42 cm – 1.97 x 1.4 ft) |
| Thickness | Minimum thickness: 1 mm (0.04”) Maximum thickness: 45 mm (1.77”) |
| Maximum weight | 10 kg/m² on printing table (22 lb) |
| Flexible media | |
| Maximum width | 320 cm (10.5 ft) 316 cm (10.3 ft) with borderless printing |
| Maximum length | n/a – restricted by weight and diameter |
| Thickness | Min. 0.2 mm (0.08”) |
| Maximum weight | 0.31 kg (0.682 lb) per cm (0.4”) roll width, meaning 100 kg (220 lb) evenly distributed over the full 3.2 m (10.5 ft) width |
| Maximum roll outside diameter | Support for 3” core-media rolls – maximum media roll diameter 30 cm (11.8”) (larger diameter up to 50 cm (19.7”) can be allowed within the distributed weight limitation, in case only print side OUT is used – both unwinder and winder) |
| PRINT HEADS & INKS | |
| Print heads | Konica-Minolta heads |
| Inks | CMYKLcLm + white |
| IMAGE & TEXT QUALITY | |
| High-quality prints | Up to 720 x 1400 dpi |
| Text quality | Positive: 4 point / Negative: 6 point |
| ELECTRICITY & COMPRESSED AIR | |
| Electricity | 380 V 3-phase star connection with Neutral wire (3 x 32 A) 50/60Hz230V 3-phase delta connection without Neutral wire (3 x 32 A) 50/60 Hz |
| Compressed air | Oil-free (class 1 according to ISO 8573-1 2010), 160 l/min compressor with 50 l barrel @6bar |
| SYSTEM INTEGRATION RIP / WORKFLOW SOFTWARE | |
| Integrated production solution with Asanti workflow software. | |
