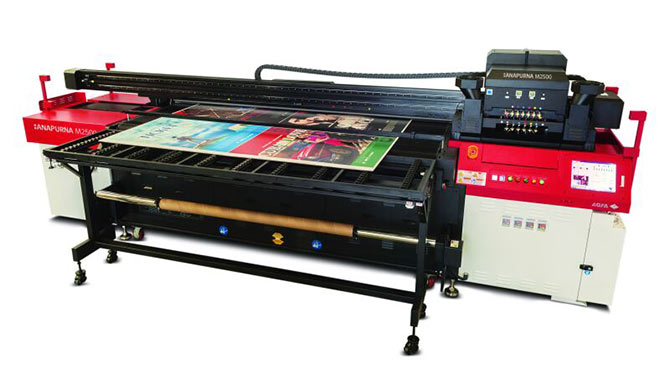

Agfa Anapurna M2500

M2500 header

Anapurna M2500 is a wide format high-speed UV curable inkjet system for graphic screen printers, photo shops and sign shops. It is a heavy-duty, turnkey and complete industrial UV inkjet system. It is designed to produce outdoor and indoor top quality wide format jobs in any 'print for pay' industry environment, on a wide range of rigid and roll-to-roll media. The white ink function creates new possibilities for printing on transparent material for backlit applications or printing white as a spot colour.

2,5 m wide for more productivity and a wider range of applications

2,5m is a popular print width expanding your range of flexible applications. Or you could increase your productivity simply by printing more boards at a time. The Anapurna M2500 adds more versatility to your business.

Speed is key

Measured at optimum print shuttle speed, the system is produces output in the six colours at top throughput at 63 m²/h. There is no mounting, no waiting, and no remakes. At that speed you will be able to maintain a high print production on all your substrates,satisfying your most demanding customers.

White is beautiful

The Anapurna M2500 has white ink on-board, ideal to print on coloured or dark substrates. It also creates possibilities for printing on transparent material for backlit or backlit/frontlit applications or simply as a white spot colour. You might even consider printing images on dark substrates using white ink only. Stand out and let Anapurna M2500 differentiate your decoration and communication jobs.

Anapurna M2500 white ink system is reliable

Anapurna M2500 has a fully separated white ink management system. (separate circulation system, under-pressure-regulation ánd cleaning circuit) The white ink tank is equipped with a stirring mechanism to keep the ink properly mixed at all times. And... pre-or post-white can be done in one production run.



For full details, call us on 01536 415511

or email us by clicking This email address is being protected from spambots. You need JavaScript enabled to view it..

  • Media & Printing Specifications - Rigid media

    Maximum width

    205 cm (6.7 ft)

    200 cm (6.6 ft) with borderless printing

    Maximum length

    3.2 m (10.5 ft) – 4 rigid tables (2 rear & 2 front)

    Minimum size

    A2, landscape

    Thickness

    Minimum thickness: 1 mm (0.04”)

    Maximum thickness: 45 mm (1.77”)

    Maximum weight

    10 kg/m² on printing table (22 lb)

    Media & Printing Specifications - Flexible media

    Maximum width

    205 cm (6.7 ft)

    Maximum length

    n/a – restricted by weight and diameter

    Thickness

    Min. 0.2 mm

    Maximum weight

    50 kg (110 lb)

    Maximum roll outside diameter

    Support for 3” core-media rolls with maximum outside diameter 36 cm (14.17”)

    Borderless printing flexible media

    200 (6.6 ft)

    Productivity

    Draft mode

    Express mode

    Production mode

    Standard quality mode

    High-quality mode

    High-definition mode

    Up till 104 m²/h  (Up till 1.119 ft²/h)

    64-71 64 m²/h (689-764 ft²/h)

    32-52 m²/h (344-560 ft²/h)

    19-28 m²/h (204-301 ft²/h)

    14-15 m²/h (151-161 ft²/h)

    8 m²/h (86 ft/h)

    Print Heads & Inks

    Print heads

    • 6 Konica-Minolta KM1024i-heads: 1024 nozzles/head with a droplet volume of 12 pl (colors)

    • 2 Konica-Minolta KM1024i-heads: 30 pl (white in line)

    Inks

    CMYKLcLm + white

    Image & Text Quality

    High-quality prints

    Up to 720 x 1400 dpi

    Text quality

    Positive: 4 point / Negative: 6 point

    Engine Weight & Dimensions

    Printer dimensions (H x W x L)

    169 x 458 x 154 cm (67 x 180 x 61")

    Weight

    1800 kg (3968 lb)

    Electricity & Compressed Air

    Electricity

    380 V 3-phase star connection with Neutral wire

    (3x 32A*) 50/60Hz

    230V 3-phase delta connection without Neutral wire

    (3x 30A*) 50/60 Hz

    Compressed air

    Oil-free 5-30 l/min @6bar

    System Integration RIP / Workflow Software

    Integrated production solution with Asanti, third-party RIP integration possible
