Mimaki UJV 160 Hybrid UV

UJV160 header

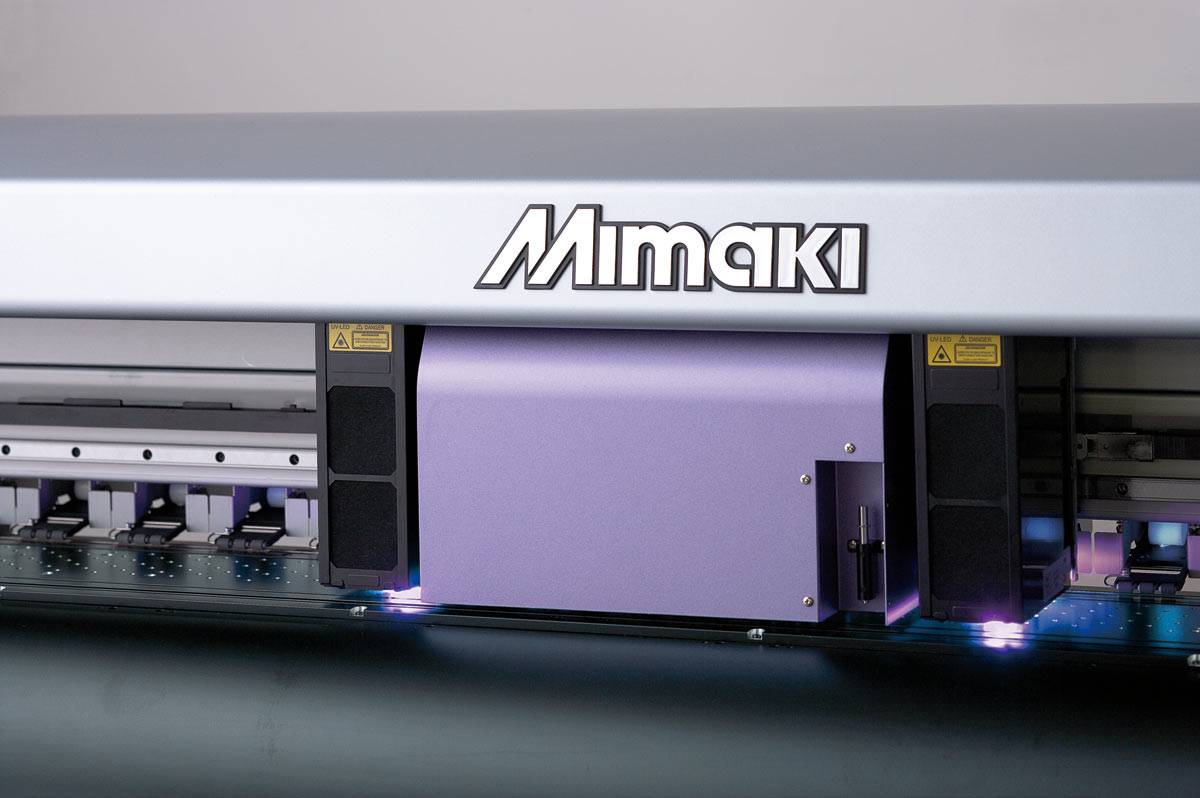

Printers wishing to broaden their use of PVC and vinyl media are often afraid of drying times, deformation of media and cracking of inks. Mimaki has the solution. The UJV-160 using breakthrough UV LED curing technology eliminates all problems associated with printing on PVC and vinyl so broadening the print service provider's portfolio.M/p>

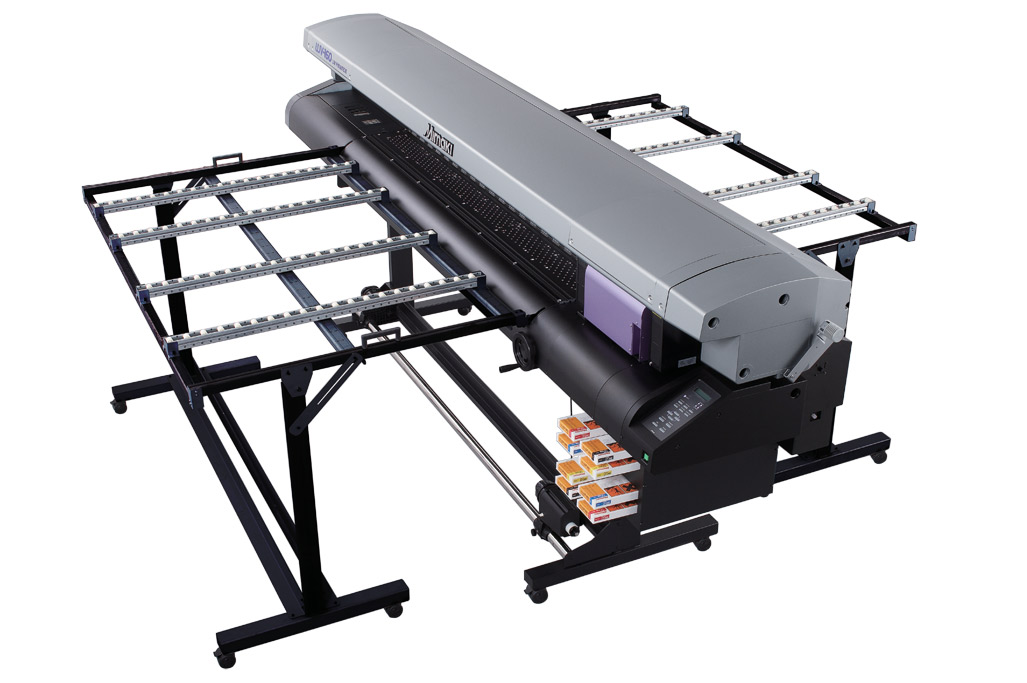

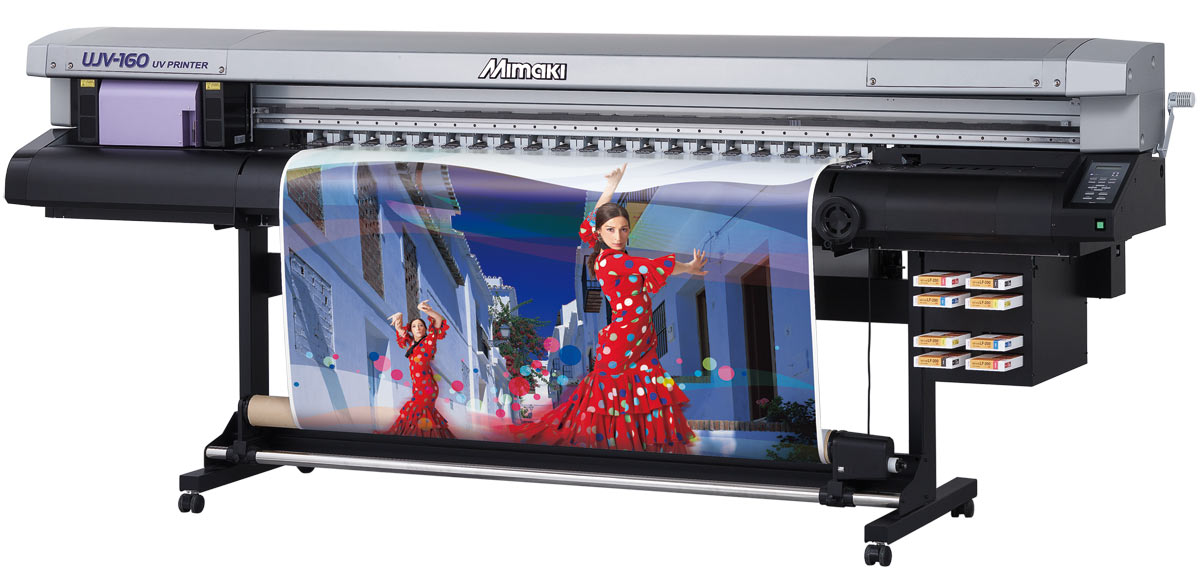

The Mimaki UJV-160 large format inkjet printer for rigid materials up to 10 mm thickness. As standard, the UJV-160 comes with roll to roll feed for Vinyls and papers and delivery tables for those rigid substrates. Thus printing on foam boards and other lightweight materials up to a thickness of 10 mm. Tables are foldable, for storage when not in use.

  • In The Box
  • Specifications
  • Supplies

  • UJV-160 icon

    The following items are supplied with the JV33 Series:

    UJV-160 Series Printer

    • 8 x Pre-Fill Cartridges
    • 1 x full set of 8 ink cartridges
    • Roll Take-Up System
    • Solvent Cleaning kit with cleaning fluid
    • Mimaki RasterLink Pro V SG Software RIP (PC)
    • Operation & Maintenance Guides
    • One year onsite manufacturers parts and labour warranty

    Optional Items

    • Extended Warranty/Service Contract
    • Flatbed Tables (Supplied as standard with non-RR model)

  • Manufacturers Specifications for the UJV-160.

    ItemUJV-160
    Print Head
    On-demand Piezo head
    Print Resolution
    600 dpi, 1200 dpi
    Ink Type
    UV-curable fl exible ink (5 colour: C, M, Y, K, W)
    UV-curable hard ink (5 colour: C, M, Y, K, W)
    Max Capacity
    1,200 cc (600 cc x 2 ink packs)/colour
    Maximum Print Width
    Roll: 1,610 mm (63,3”), Rigid: 1,600 mm (63.0”)
    Media Width
    1,620 mm (63.7”)
    Thickness
    Max. 10 mm (0.39”)
    Weight
    Roll: less than 25 kg (55 lbs.)
    Rigid: less than 12 kg (26.5 lbs.)
    Roll Diameter
    Inside: 2 inch, 3 inch / Outside: Less than ø 180 mm (7.1”)
    Media Cutting
    Manual cutting
    Ink Curing
    UV LEDs
    Media Heater
    Pre/print heater
    Media Take-up Device
    Roll take-up device (Standard), inside/outside selectable
    Interface
    USB 2.0
    Applicable Standard
    VCCI class A, UL60950-1, FCC class A,
    CE marking (EMC directive, low voltage directive), CB report, RoHS
    Power
    AC100V~120V, 200~240V±10%, 50•60Hz±1Hz, less than 1.68KVA
    Operating environment
    15ºC~30ºC, 35~65%Rh (No condensation)
    Dimensions
    (W x D
    x H)    		 Main Unit
    Max. Capacity & Media Stand
    3300 mm x 4300 mm x 1290 mm (129.9” x 169.3” x 50.7”)
    (Main unit and table with support wire)
    Weight Main Unit
    260 kg (573 lbs.)
    Media Table
    50 kg (110 lbs) x 2 units
  • ItemColourCodeDetails
    LF-200 Flexible UV ink
    C/M/Y/K/W
    SPC-591 C/M/Y/K/W
    600 cc pack
    LH-100 Hard UV ink
    C/M/Y/K/W
    SPC-0597 C/M/Y/K/W
    F-200 cleaning cartridge
    SPC-0516FS
    440 cc cartridge
    • Ventilation is required since volatile substances are emitted from non-curing UV ink.
    • Post-printing performance (adhesion, weather durability, etc.) varies according to the media.
    • If substrates other than described are to be used, please test beforehand.
    • Adhesion performance differs according to the substrate. In some cases optimisation of ink and anchor coat / overcoat are necessary.
