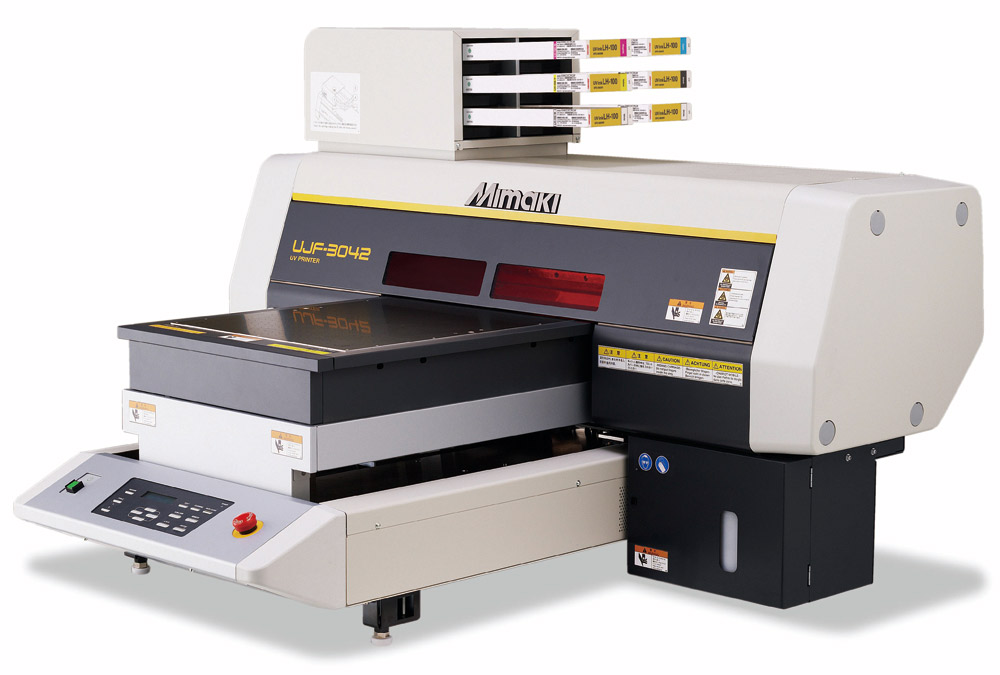

Mimaki UJF-3042FX Desktop UV Flatbed

UJF-3042FX header

The Mimaki UJF-3042FX is a desktop size UV LED inkjet printer that offers the ability to print high quality images upto 1200 x 1400dpi onto virtually any uncoated substrate upto A3 in size (300 x 420mm). With the latest LED UV lamp technology the UJF allows imaging onto substrates that would normally be unsuitable due to their sensitivity to heat that is normally present when normal UV lamps are used.

With applications being endless and including but not restricted to commercial labels, badges, packaging, stickers and display products there is also the opportunity to produce personalised products such as phone covers, promotional goods, giftware and membrane covers. All with the option of White ink!!

Traditional digital print medias can all be imaged and also products such as wood, metal, glass, ceramics and plastics can be used to create a unique result. Again the White ink allows for printing onto colured substrates when used as a base layer to ensure vibrant results on non white media such as wood or metals. With the option of being used to flood coat a whole image or individual areas of print the White ink truly makes the UJV 3042 a flexible tool for any application.

  • UJF-3042FX icon

    The following items are supplied with the UJF-3042FX:

    • UJF-3042FX Printer
    • 6 x Pre-Fill Cartridges
    • 1 x full set of 6 x 220ml ink cartridges
    • UJF UV Cleaning kit with cleaning fluid
    • Mimaki RasterLink Pro V SG Software RIP (PC)
    • Operation & Maintenance Guides
    • One year onsite manufacturers parts and labour warranty

    Optional Items

    • Extended Warranty/Service Contract
    • Eco Cases (8 Pack)
  • Manufacturers Specifcations for the UJF-3042FX.

    ItemSpecifications
    Print Head
    On-demand Piezo Head
    Print Resolution
    720 x 600 dpi, 1440 x 1200 dpi
    Ink Kind

    LH-100 hard UV curable ink (C/Y/M/K/W/Cl)

    LF200 flexible UV curable ink (C/Y/M/K/W/Cl)

    LF-140 (C/Y/M/K/W/Cl)

    Ink Capacity
    220ml cartidge / 600ml ink pack
    Inkjet primer
    PR-100 (2220ml cartidge / 600ml ink pack
    Max Print Size
    Width 300mm (11.8"), Length 420mm (16.5")
    Max Media Size
    Wdith 364mm (14.3"), Length 420mm (18.2")
    Max Media Thickness
    Up to 50mm (2")
    Max Media Weight
    Less than 5kg (11lbs)
    Media Set Device
    Air suction by Vacuum
    UV Device
    UV LED
    Interface
    USB 2.0
    Applicable Standard
    VCCI class A, FCC class A, UL, RoHS Directive, CE Marking
    Power Spscifications
    AC 100 – 240 V (Automated voltage conversion)
    Power Consumption
    Less than 0.5 kVA
    Environment Temperature
    20 – 35 °C (68 – 95 °F)
    Environment Humidity
    35 – 65 % Rh
    Environment Dust
    Equivalent to normal office level
    Dimensions (WxDxH)/Weight
    1,200 x 1,090 x 770 mm (47.2” x 42.9” x 30.3”) / 113 kg (249.1 lbs)
    • Please note that properties, adhesion, weather resistance, etc.of ink and substrates can vary. Therfore please test materials before printing.
    • Some substrates require primer before printing. Please test materials beforehand or ask you sales representative
    Item
    Item Code
    Details
    UV Ink LH-100
    SPC-0659 C/Y/M/K/W/Cl
    220ml cartridge
    UV Ink LH-100
    SPC-0597 C/Y/M/K/W/Cl
    600ml ink pack
    UV Ink LF-200
    SPC-0660 C/Y/M/K/W/Cl
    220ml cartridge
    UV Ink LF-200
    SPC-0591 C/Y/M/K/W/Cl
    600ml ink pack
    UV Ink LF-140
    SPC-0727 C/Y/M/K/Lc/Lm/W
    220ml cartridge
    UV Ink LF-140
    SPC-0728 C/Y/M/K/Lc/Lm/W
    600ml ink pack
    Inkjet Primer PR-100
    SPC-0731
    220ml cartridge
    InkJet Priner PR-100
    SPC-0732
    600ml ink pack
    Eco-Case
    OPT-J0237
    8 x cases
    • 600ml ink pack requires eco cartridge (OPT-J0237). Eco cartridges can be used repeatedly by replacing ink packs.
    • Inkjet priner cannot be used in conjuction with the LF200 inks.
    • Clear ink is not available for LF-140 inks. However, LH-100 clear ink can be used in combination with LF-140 inks.
