Mimaki JV5

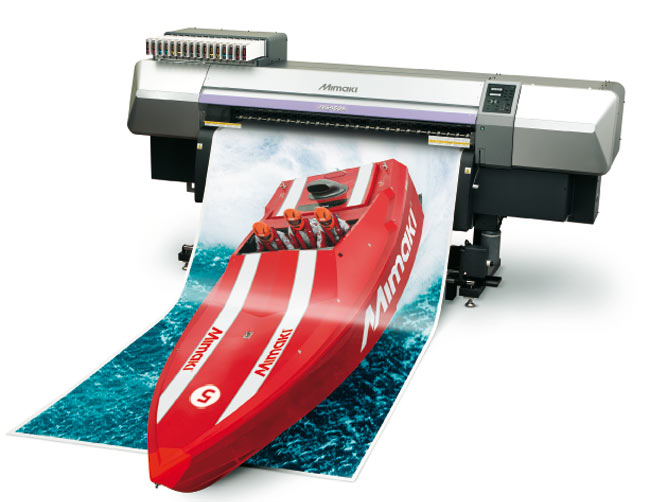

JV5 header

Designed using Mimaki's legendary state-of-the-art inkjet technologies this range includes the 63” (160cm) JV5 160 and 126” (320cm) JV5 320. With a variety of configuration options including 4 colour (CMYK) or 6 colour (CMYK, Lc, Lm) and the choice of Mimaki HS1 or SS21 solvent and ES3 Eco solvent inks. Print resolutions of 540, 720, 1080 and 1440 dpi ensure there is a configuration for every application.

High quality production at speeds upto 54 sq/m per hour make this range the market leader in class. UISS (uninterrupted ink supply system) which provides unattended long-time continuous print without an operator makes unattended operation simple coupled with the brilliant roll to roll take up system that offers accuracy and reliability not seen on other systems.

Running 4 printheads with 8 channels each the JV5 offers stunning print quality at speeds normally associated with much higher price points making the JV5 true value for money.



For full details, call us on 01536 415511

or email us by clicking This email address is being protected from spambots. You need JavaScript enabled to view it. .

  • JV5 icon

    The following items are supplied with the JV5 Series:

      • JV5 Series Printer
      • 1 x Full set Pre-Fill Cartridges
      • 1 x full set of 18 ink cartridges
      • Roll Take-Up System
      • Solvent Cleaning kit with cleaning fluid
      • Mimaki RasterLink Pro V SG Software RIP (PC)
      • Operation & Maintenance Guides
      • Two year onsite manufacturers parts and labour warranty

    Optional Items

    • Extended Warranty/Service Contract
    • Air Filtration System
    • Mimaki SS21 Bulk Ink System
  • Manufacturers Specifcations for the JV5-160.

    ItemSpecification JV5 - 160
    Print Head
    On-demand Piezo head (Array of 4 staggered print heads)
    Maximum Printing Width
    1620mm (63.7")
    Printing Resolution 540, 720, 1440 dpi
    Printing Mode (Scan x Feed)
    720 x 540 dpi: bi-directional and uni-directional
    720 x 900 dpi: bi-directional and uni-directional
    540 or 720 x 720 dpi: bi-directional and uni-directional
    540 or 720 x 1080: bi-directional and uni-directional
    720 x 1440 dpi: bi-directional and uni-directional
    1440 x 1440 dpi: bi-directional and uni-directional
    Ink Kind
    Exclusive solvent ink: ES3 ink or HS ink
    Supply
    Automatic change of double ink cartridges
    Capacity
    6 colour mode: 440cc cartridge x 2/colour, 880 cc/colour
    4 colour mode: 440cc cartridge x 4/colour, 1760 cc/colour
    Media Specification Size
    Max width 1630 (64.17")
    Min width 297mm (11.6")
    Thickness
    1.0mm or below
    Roll Weight
    38kg (83.7 lbs) or below
    Printing Surface
    Face Out
    Inner diameter of paper bobbin/outer diameter of roll
    2 inch, 3 inch/f200mm (7.87") or below
    Media Cutting
    Cutting in Y direction by cutter at the head
    Media Heater
    3 Way intelligent heater (PRE/Print/POST)
    Media Take-up Device
    Roll take-up device (standard)
    Nozzle Checking Unit (NCU)
    Laser systems (Class 1 or below)
    Print Gap
    1.5mm to 7mm, step-less and user setting
    Automatic detection of media thickness
    Interface
    USB 2.0
    Applicable Standard
    1) VCCI Class A, 2)FC Class A
    3)UL 60950. CE Marking (EMC Directive, Low Voltage Directive) Responsive to 5)CE Report, 6) RoHS
    Power Source Specification
    AC 200 ~ 240V ± 10%, 50/60 Hz ± 1 Hz
    15A or below
    Power Consumption
    3,600 VA or below
    Operating Environment
    Usable temperature: 20 c to 35 c
    Humidity: 35% to 65% Rh, non-condensing
    Dimensions (WxDxH)
    3120 x 1050 x 1540 mm
    (122.9" x 41.4" x 60.7")
    Weight
    333kg (733.5 lbs)
  • Manufacturers Specifcations for the JV5-320s.

    ItemSpecification JV5 - 320s
    Print Head
    On-demand Piezo head (Array of 4 staggered print heads)
    Maximum Printing Width
    3250mm (128")
    Printing Resolution
    540, 720, 1440 dpi
    Printing Mode (Scan x Feed)
    720 x 540 dpi: bi-directional and uni-directional
    720 x 900 dpi: bi-directional and uni-directional
    540 or 720 x 720 dpi: bi-directional and uni-directional
    540 or 720 x 1080: bi-directional and uni-directional
    720 x 1440 dpi: bi-directional and uni-directional
    1440 x 1440 dpi: bi-directional and uni-directional
    Ink Kind
    Exclusive solvent ink: ES3 ink or HS ink
    Supply
    Automatic change of double ink cartridges
    Capacity
    6 colour mode: 440cc cartridge x 2/colour, 880 cc/colour
    4 colour mode: 440cc cartridge x 4/colour, 1760 cc/colour
    Media Specification Size
    Max width 3330mm (129.9")
    Min width 297mm (11.6")
    Thickness
    1.0mm or below
    Roll Weight
    130kg (286.6 lbs) or below
    Printing Surface
    Face Out/Face In
    Inner diameter of paper bobbin/outer diameter of roll
    2 inch, 3 inch/f200mm (7.87") or below
    Media Cutting
    Cutting in Y direction by cutter at the head
    Media Heater
    3 Way intelligent heater (PRE/Print/POST)
    Media Take-up Device
    Automatic take-up device, inside/outside selectable 3" paper bobbin; Outer diameter 300mm or less
    Nozzle Checking Unit (NCU)
    Laser systems (Class 1 or below)
    Print Gap
    1.5mm to 7mm, step-less and user setting
    Automatic detection of media thickness
    Distance Accuracy Absolute accuracy
    ± 0.3mm or ± 0.3% of designated distance
    (whichever is the greater)
    Repeatability
    ± 0.2mm or ± 0.1% of designated distance
    (whichever is the greater)
    Interface
    USB 2.0
    Applicable Standard
    1) VCCI Class A, 2)FC Class A
    3)UL 60950. CE Marking (EMC Directive, Low Voltage Directive) Responsive to 5)CE Report, 6) RoHS
    Power Source Specification
    AC 200 ~ 240V ± 10%, 50/60 Hz ± 1 Hz
    30A or below
    Power Consumption
    7,200 VA or below
    Operating Environment
    Usable temperature: 20 c to 35 c
    Humidity: 35% to 65% Rh, non-condensing
    Dimensions (WxDxH)
    5170 x 1610 x 1640 mm
    Weight
    1200kg (2646 lbs)
  • ItemCode
    HS Ink
    440 cc
    SPC-0477
    SS21 Ink
    440 cc
    SPC-0433
    ES3 Ink
    220cc
    SPC-0475
    Solvent Wiper Kit
    10 pc
    SPA-0125
    Waste Ink Bottle 4 litre
    1 pc
    SPA-0128
    Cutter Blade Assembly
    1 pc
    SPA-0126
