Mimaki JV33 Series

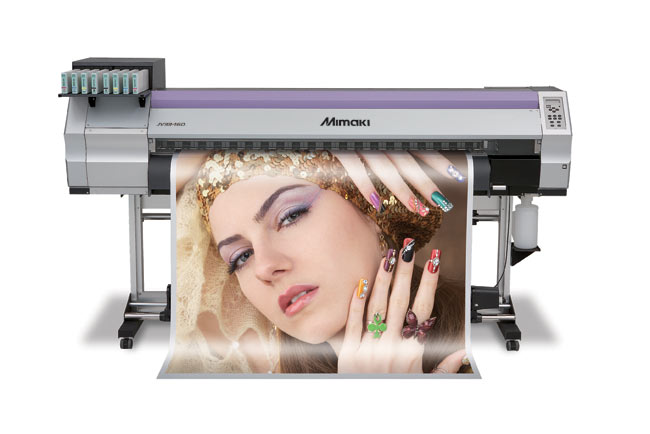

JV33 header

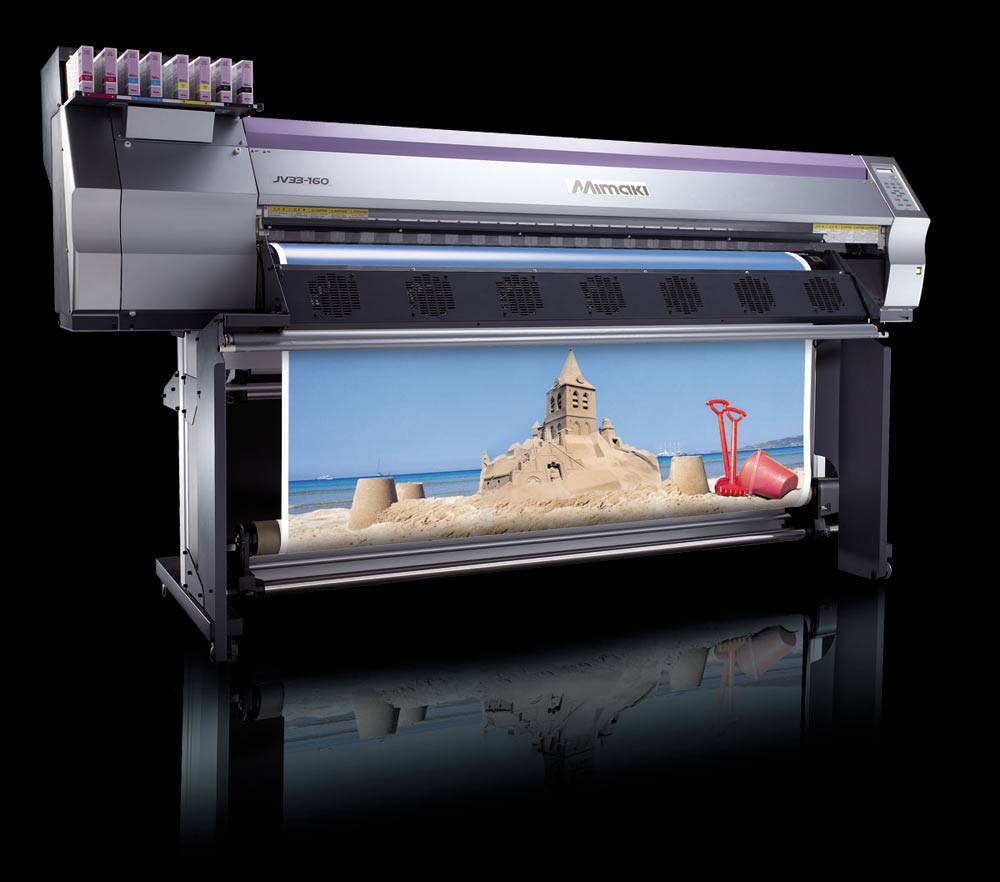

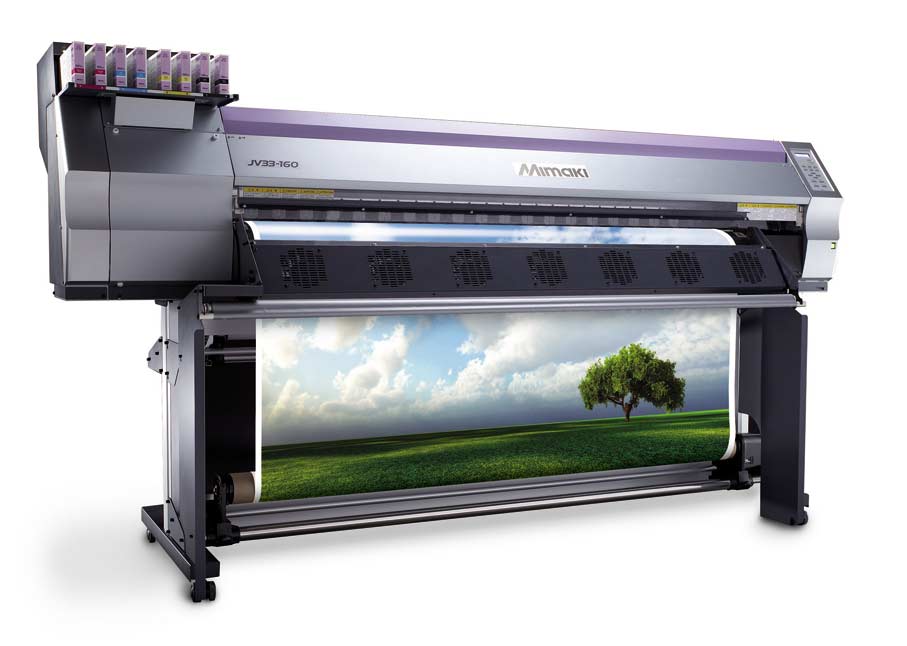

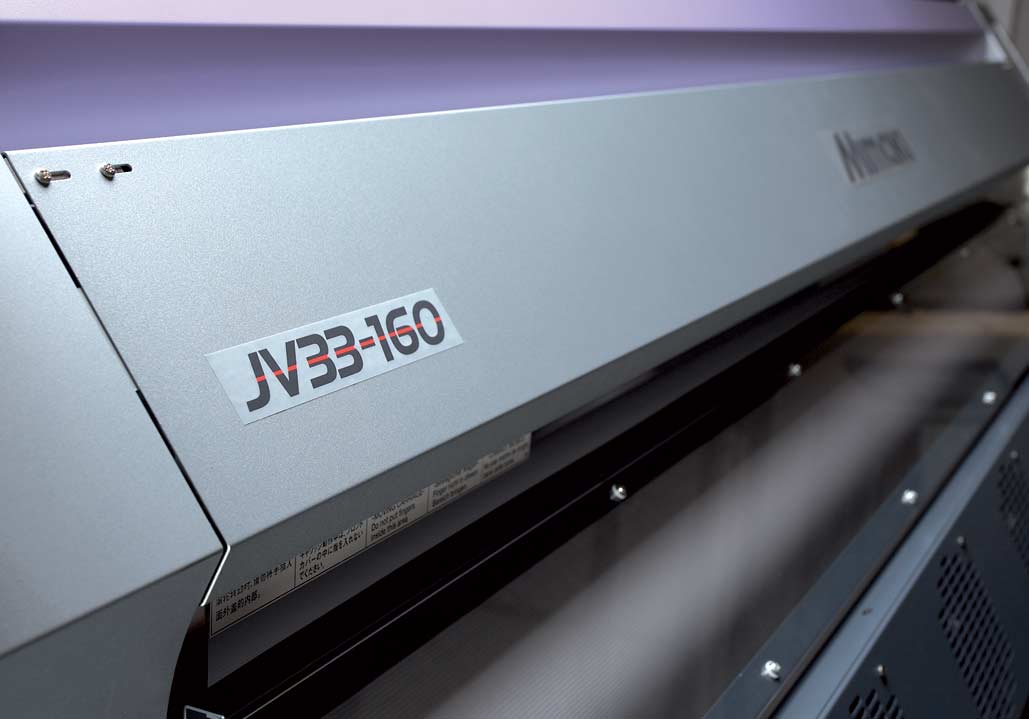

Designed using Mimaki's legendary state-of-the-art inkjet technologies this range includes the 54-inch (130cm) JV33 130, and 63-inch (160cm) JV33 160.

Configuration options are endless with 4 colour (CMYK), 6 colour (CMYK, Lc, Lm), 6 colour plus White (CMYK, Lc, Lm + White) or 6 colour plus Metallic (CMYK, Lc, Lm +Metallic). There is also the choice of Mimaki SS21 solvent or ES3 Eco solvent inks.

Print resolutions of 540, 720, 1080 and 1440 dpi ensure there is a configuration for every application.

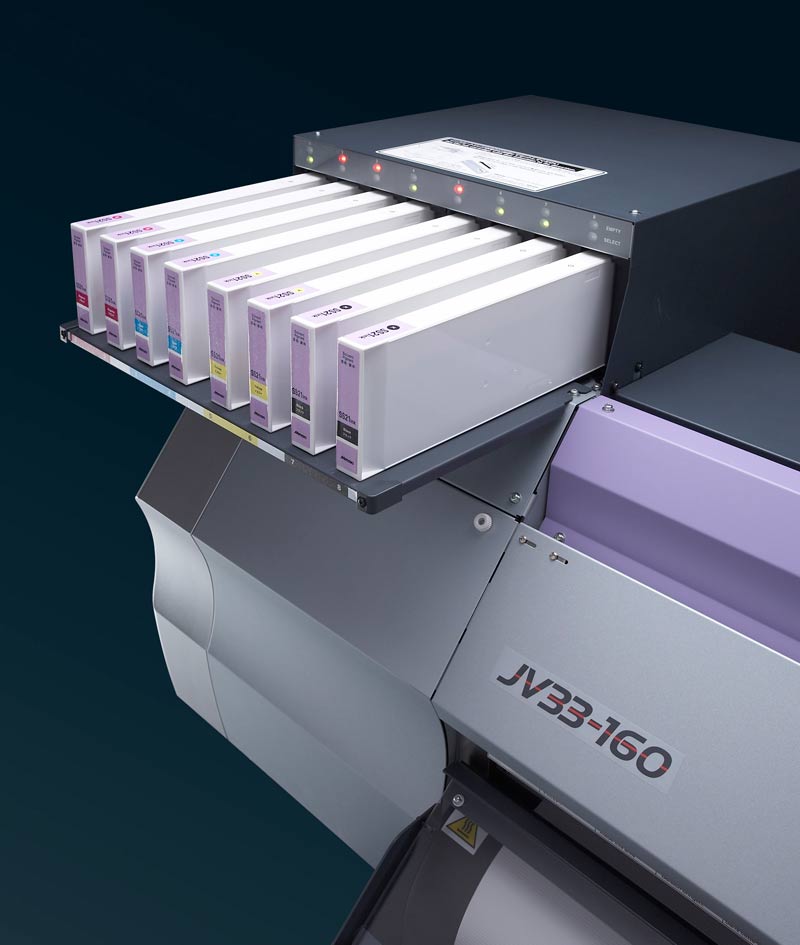

High quality production at industry leading speeds for it’s class make this range the market leader. UISS (uninterrupted ink supply system) which provides unattended long-time continuous print without an operator makes unattended operation simple coupled with the brilliant roll to roll take up system that offers accuracy and reliability not seen on other systems.

This range is also available as a bundled deal with the Mimaki CGFX cutter range offering all of the above benefits with a standalone cutting system that will truly enhance any production facility.

  • In The Box
  • Specifications
  • Supplies

  • JV33 icon

    The following items are supplied with the JV33 Series:

    • JV33 Series Printer
    • 8 x Pre-Fill Cartridges
    • 1 x full set of 8 ink cartridges
    • Roll Take-Up System
    • Solvent Cleaning kit with cleaning fluid
    • Mimaki RasterLink Pro V SG Software RIP (PC)
    • Operation & Maintenance Guides
    • Two year onsite manufacturers parts and labour warranty

    Optional Items

    • Extended Warranty/Service Contract
    • Drying & Exhaust Unit
    • Air Filtration System
    • Mimaki SS21 Bulk Ink System

  • Manufacturers Specifcations for the JV33 Series.

    ItemJV33-130JV33-160
    Print head
    On-demand Piezo head (180 nozzles x 8 lines) x 1 head
    Maximum printing width
    1,361 mm (53.5”)
    1,610 mm (63.3”)
    Printing resolution
    540, 720, 1440 dpi
    Print Mode (Scan x Feed)
    540 x 720 dpi, 540 x 900 dpi. 540 x 1080 dpi
    720 x 540 dpi, 720 x 720 dpi, 720 x 1080 dpi, 720 x 1440 dpi
    1440 x 1440 dpi
    Ink Types
    Exclusive solvent ink: ES3 ink, SS21 ink
    Exclusive aqueous pigment ink
    Exclusive dye sublimation ink
    Ink Capacity
    4-colour mode: 440 cc cartridge x 2/colour, 880 cc/colour
    6-colour mode: 440 cc cartridge x 1/colour, 440 cc/colour
    Media Size
    1,371 mm (53.9”)
    1,620 mm (63.9”)
    Media Roll Weight
    Less than 25 kg (55.1 lbs.)
    Printing Surface
    Face out
    Roll Inside Diameter
    2 inch or 3 inch
    Media cutting
    Cutting on Y direction by cutter at the head
    Media heater
    Triple stage intelligent heater (Pre/Print/Post)
    Media take-up device
    Roll take-up device (standard), inside / outside selectable
    Interface
    USB 2.0
    Applicable standard
    VCCI Class A, FCC Class A, UL 60950-1
    CE Marking (EMC Directive, low voltage directive), CB report
    Power
    AC 100 ~ 120V ± 10%, AC 220 ~ 240V ± 10%, 50/60 Hz ± 1 Hz
    Power consumption
    Less than 1,440 VA
    Operating environment
    Usable temperature: 20ºC ~ 35ºC (64 ~ 95ºF), Humidity: 35 ~ 65%Rh (no condensation)
    Dimensions (WxDxH)
    2,289 x 739 x 1,424 mm
    (90.1” x 29.1” x 56.1”)
    2,538 X 739 X 1,424 mm
    (99.9” x 29.1” x 56.1”)
    Weight
    145 kg (320 lbs.)
    160 kg (353 lbs.)
  • Item
    		Pack SizeProduct Code
    SS21 Solvent Ink
    440cc
    SPC-0501 C/Y/M/K/Lc/Lm
    White Ink
    220cc
    SPC-0504W
    ES3 Eco Solvent Ink
    440cc
    SPC-0440 C/Y/M/K/Lc/Lm
    Wiperkit 33S
    10 pcs
    SPA-0314
    Waste Ink Bottle 2l
    1 pc
    SPA-0134
    Cutter Blade Assembly
    1 pc
    SPA-0107
    MS Cleaning Cartridge
    220cc
    SPC-0294
    Cutter Holder (Standard Accessory)
    1 pc
    SPA-0001
    Cutter Holder
    1 pc
    SPA-0090
    Standard Vinyl Blade
    3 pcs
    SPB-0030
    Blade For Vinyl & Paper
    3 pcs
    SPB-0001
    Blade For Small Detail
    3 pcs
    SPB-0003
    Blade For Reflective Media
    2 pc
    SPB-0006
    Blade For Fluorescent Media
    3 pcs
    SPB-0007

    * 2 litre ink packs can be used with the bulk ink system

    ** SB52 ink has three types of black ink: Normal black (NK), Deep black (K) & Reddish black (RK)
