Mimaki JV33 Printer Cutter Bundles

The Perfect Marriage...

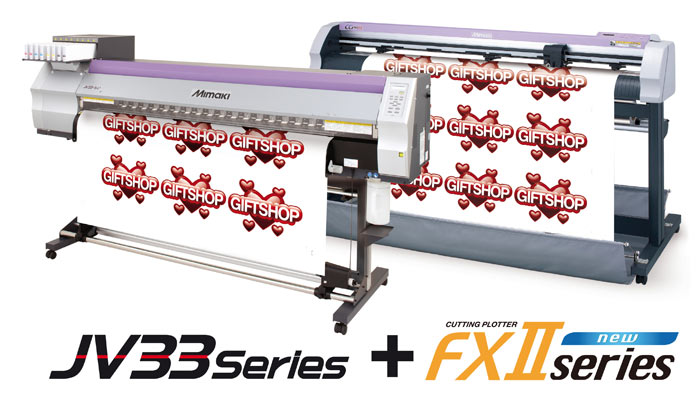

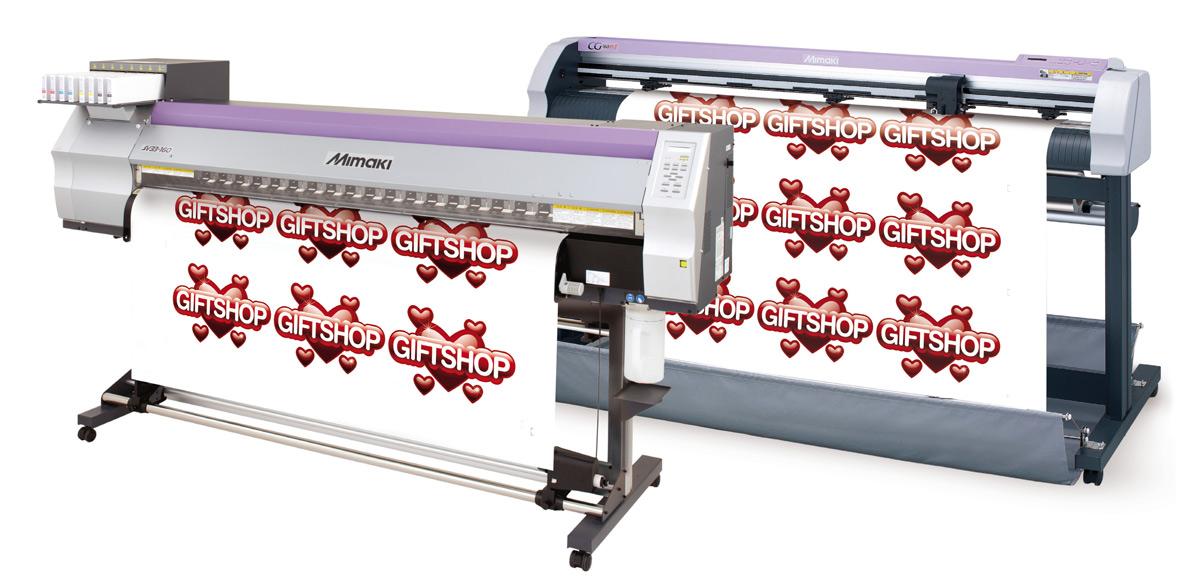

The Mimaki JV33 printer and the CGFX-II cutter are the perfect partners. So much so that Mimaki have a very special pricing when both machines are purchased together.

Benefits of Separate Print & Cut

On first appearance, it is easy to see why some people think that an integrated printer cutter is better than a separates system. Indeed when space is tight there sometimes isn't any choice, and you should look at the CJV30 series instead. However, there are many advantage to a seperate system, all of which results in such stand alone printer and cutter being far more productive:

A dedicated printer has many more pinch rollers in it's mechanism, meaning that you can run a full 50m roll overnight/unattended - something you can't reliably do with an integrated machine.
Dedicated cutters are much faster at cutting than an integrated cutter, and therefore more productive. This is especially true with deatiled and complex cutting paths, where the speed gains are even more noticable.
Duality. With a separate system you can be printing out graphics, whilst simultaneously be cutting out work that has been previously printed.
Equipment redundancy. With the separates system, you can use the cutter for normal cutting duties - avoiding the need of having another machine for these tasks.

The Two Machines

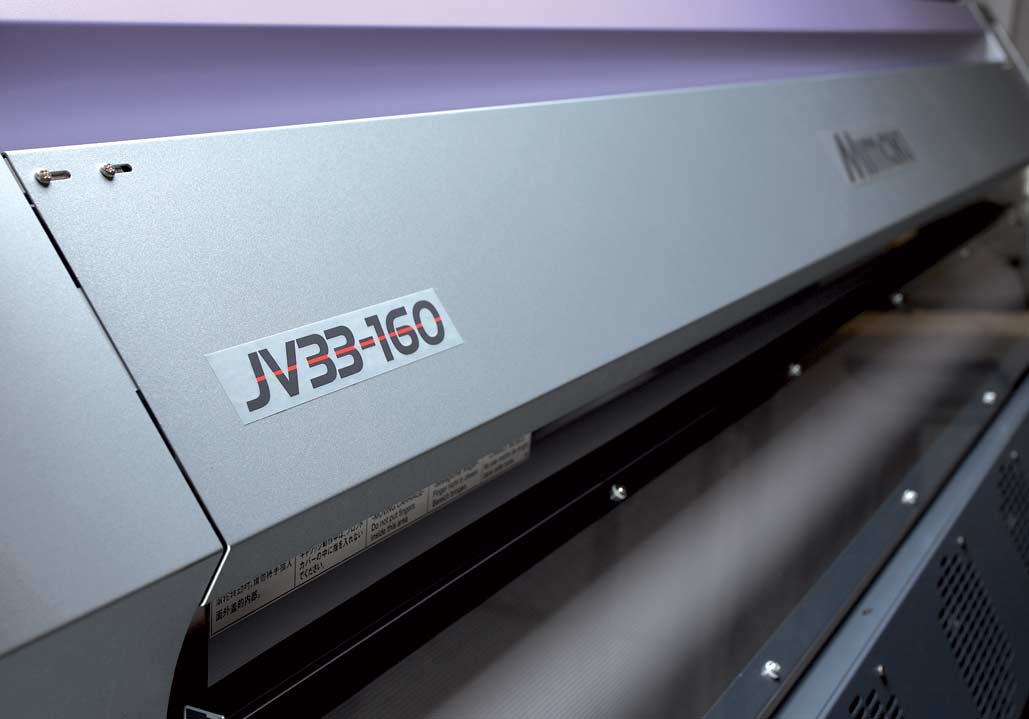

The Mimaki JV33 is the class leading solvent printer and has rapidly become the graphics manufacturer's favourite - and with good reason. You can see full details on the the JV33 HERE.

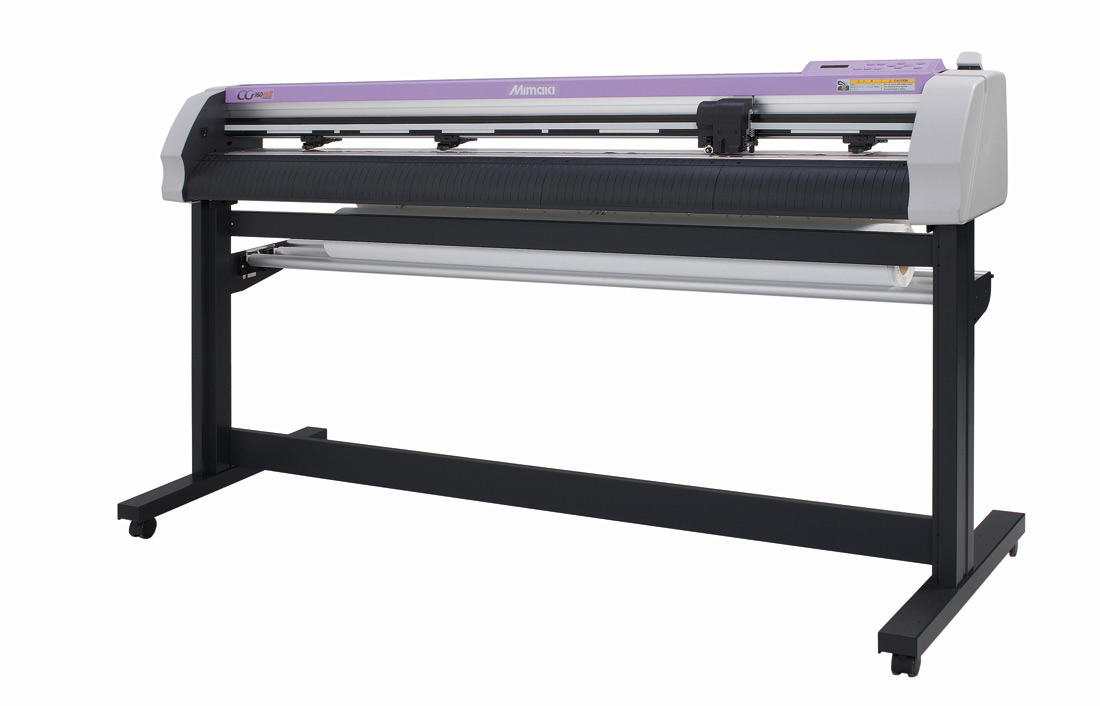

The CG-FXII series cutter is Mimaki's tope of the range roller cutter, and is renown for it's build quality and reliability. It features a super accurate optical registration system, and a die cutting facility, all topped off with a two year onsite warranty.

The Mimaki JV33 & CG-FXII bundle is available in two sizes - 1375mm (54") and 1600mm (63"). You can see full details on the the CG-FXII HERE.

For full details, call us on 01536 415511

or email us by clicking This e-mail address is being protected from spambots. You need JavaScript enabled to view it. .

In The Boxes
JV 33 Specs
CG-FXII Specs
JV33 Supplies
CG-FXII Supplies

The following items are supplied with the JV33 Series:
- JV33 Series Printer
- 8 x Pre-Fill Cartridges
- 1 x full set of 8 ink cartridges
- Roll Take-Up System
- Solvent Cleaning kit with cleaning fluid
- Mimaki RasterLink Pro V SG Software RIP (PC)
- Operation & Maintenance Guides
- Two year onsite manufacturers parts and labour warranty
Optional Items
- Extended Warranty/Service Contract
- Drying & Exhaust Unit
- Air Filtration System
- Mimaki SS21 Bulk Ink System
The following items are supplied with the CG-FXII Series:
- JCG-FXII Series Cutter
- 1 x Vinyl Blade
- 1 x Pen Adapter
- 1 x Blade Holder
- Mimak Finecut 8 Plug-in for Illustrator (Mac & PC) & CorelDRAW (PC)
- Operation & Maintenance Guides
- Two year onsite manufacturers parts and labour warranty
Optional Items
- Extended Warranty/Service Contract
- Catch Basket

Manufacturers Specifcations for the JV33 Series.

Item	JV33-130	JV33-160
Print head	On-demand Piezo head (180 nozzles x 8 lines) x 1 head
Maximum printing width	1,361 mm (53.5”)	1,610 mm (63.3”)
Printing resolution	540, 720, 1440 dpi
Print Mode (Scan x Feed)	540 x 720 dpi, 540 x 900 dpi. 540 x 1080 dpi
	720 x 540 dpi, 720 x 720 dpi, 720 x 1080 dpi, 720 x 1440 dpi
	1440 x 1440 dpi
Ink Types	Exclusive solvent ink: ES3 ink, SS21 ink
	Exclusive aqueous pigment ink
	Exclusive dye sublimation ink
Ink Capacity	4-colour mode: 440 cc cartridge x 2/colour, 880 cc/colour
Ink Capacity	6-colour mode: 440 cc cartridge x 1/colour, 440 cc/colour
Media Size	1,371 mm (53.9”)	1,620 mm (63.9”)
Media Roll Weight	Less than 25 kg (55.1 lbs.)
Printing Surface	Face out
Roll Inside Diameter	2 inch or 3 inch
Media cutting	Cutting on Y direction by cutter at the head
Media heater	Triple stage intelligent heater (Pre/Print/Post)
Media take-up device	Roll take-up device (standard), inside / outside selectable
Interface	USB 2.0
Applicable standard	VCCI Class A, FCC Class A, UL 60950-1
Applicable standard	CE Marking (EMC Directive, low voltage directive), CB report
Power	AC 100 ~ 120V ± 10%, AC 220 ~ 240V ± 10%, 50/60 Hz ± 1 Hz
Power consumption	Less than 1,440 VA
Operating environment	Usable temperature: 20ºC ~ 35ºC (64 ~ 95ºF), Humidity: 35 ~ 65%Rh (no condensation)
Dimensions (WxDxH)	2,289 x 739 x 1,424 mm (90.1” x 29.1” x 56.1”)	2,538 X 739 X 1,424 mm (99.9” x 29.1” x 56.1”)
Weight	145 kg (320 lbs.)	160 kg (353 lbs.)

Manufacturers Specifcations for the CGFX-II Series Cutters.

Item		CG-75FX-II	CG-130FX-II	CG-160FX-II
Acceptable Sheet Width		90mm~1,040mm (3.54"~40.9")	90mm~1,580mm (3.54"~62.0")	90mm~1,880mm (3.54"~74.0")
Acceptable Roll Sheet		Outer less than 200mm, Roll Weight leass than 18kg		Outer less than 200mm Roll Weight leass than 22kg
Effective Cutting Area *1		760mm x 51m (29.9" x 167")	1300mm x 51m (51.2" x 167")	1600mm x 51m (62.9" x 167")
Maximum Auto Cutting Width *2		870mm (34.2")	1425mm (56.1")	1720mm (67.7")
Maximum Cutting Speed		100 cm/s (39.3 "/s)
Maximum Moving Speed		140 cm/s (55 "/s)
Adjustable Speed Range *3		1-10 cm/s : 1cm step adjustment (0.39" - 3.94"/s : 0.39" step adjustment)
		10-50 cm/s : 5cm step adjustment (3.94" - 19.68"/s : 2" step adjustment)
		50-100 cm/s : 10cm step adjustment (19.68" - 39.37"/s : 3.94" step adjustment)
Mechanical Resolution		5 micrometers (0.0002")
Command Resolution		25 or 10 micrometers (0.001" or 0.0004") - MGL-IIc
Repeatability		+ or - 0.2mm (Excludes shrinkage/expansion caused by the film temperature
Pen Pressure		400g
Range of Pen Pressure	Cutter	10~20g(2g step), 20~100g(5g step), 100~400g(10g step)
	Pouncing	10~20g(2g step), 20~100g(5g step), 100~400g(10g step)
	Pen	10~20g(2g step), 20~100g(5g step), 100~400g(10g step)
Acceptable Sheet *4		Vinyl up to 0.15mm (0.006")thickness, Fluorescent type vinyl, Reflective Sheet
Sheet for Pouncing *5		Paper thickness: 0.06~0.13mm (0.0024"~0.005")
Applicable Tools		Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
Language		MGL-IIc
Interface		RS-232C, USB
Receive Buffer Size		30MB Standard (20MB When Sorting)
Operational	Temperature	5~35 c (41~95 f)
Operational	Humidity	35~75%(Rh) Non-condensation
Power Requirement		AC100V~240V
Power Consumption		130VA or less
Dimensions (WxDzH)		1285mm (50.5") x 700mm (27.5") x 1217mm (47.9")	1825mm (50.5") x 700mm (27.5") x 1217mm (47.9")	2125mm (50.5") x 700mm (27.5") x 1217mm (47.9")
Weight (with stand)		50kg (110 lbs)	60kg (132 lbs)	69kg (152 lbs)

*1 Maximum sheet feeding length differs depending on the software
*2 Sheet width to cut off from the roll
*3 Restricted sheet width
*4 Provided that the blade specific to fluorescent vinyl (SPB-0007) and the blade specific th reflective sheet (SPB-0006) are used
*5 Pouncing Tool intended specifically for pouncing shall be used.

Item	Pack Size	Product Code
SS21 Solvent Ink	440cc	SPC-0501 C/Y/M/K/Lc/Lm
White Ink	220cc	SPC-0504W
ES3 Eco Solvent Ink	440cc	SPC-0440 C/Y/M/K/Lc/Lm
Wiperkit 33S	10 pcs	SPA-0314
Waste Ink Bottle 2l	1 pc	SPA-0134
Cutter Blade Assembly	1 pc	SPA-0107
MS Cleaning Cartridge	220cc	SPC-0294
Cutter Holder (Standard Accessory)	1 pc	SPA-0001
Cutter Holder	1 pc	SPA-0090
Standard Vinyl Blade	3 pcs	SPB-0030
Blade For Vinyl & Paper	3 pcs	SPB-0001
Blade For Small Detail	3 pcs	SPB-0003
Blade For Reflective Media	2 pc	SPB-0006
Blade For Fluorescent Media	3 pcs	SPB-0007

* 2 litre ink packs can be used with the bulk ink system

** SB52 ink has three types of black ink: Normal black (NK), Deep black (K) & Reddish black (RK)

Item	CG-75FX-II	CG130FX-II	CG160FX-II
Cutter Holder	SPA-0090
Blade for sheet cutter	SPA-0119
Pouncing set	OPT-C0095 (Holder x 1, needle x 2)
Pen-line rubber	SPC-0358	SPC-0353	SPC-0381
Pen-line sponge	SPC-0359	SPC-0354	SPC-0382
Roll set	OPT-C0185	OPT-C0183	OPT-C0187
Sheet basket	OPT-C0184	OPT-C0182	OPT-C0186
Stnadard blade for vinyl	SPB-0030
For reflective sheet	SPB-0006
For fluorescent sheet	SPB-0007
For vinyl sheet and paper	SPB-0001
For small characters	SPB-0003
