Mimaki JFX Plus Series

JFXPlus header

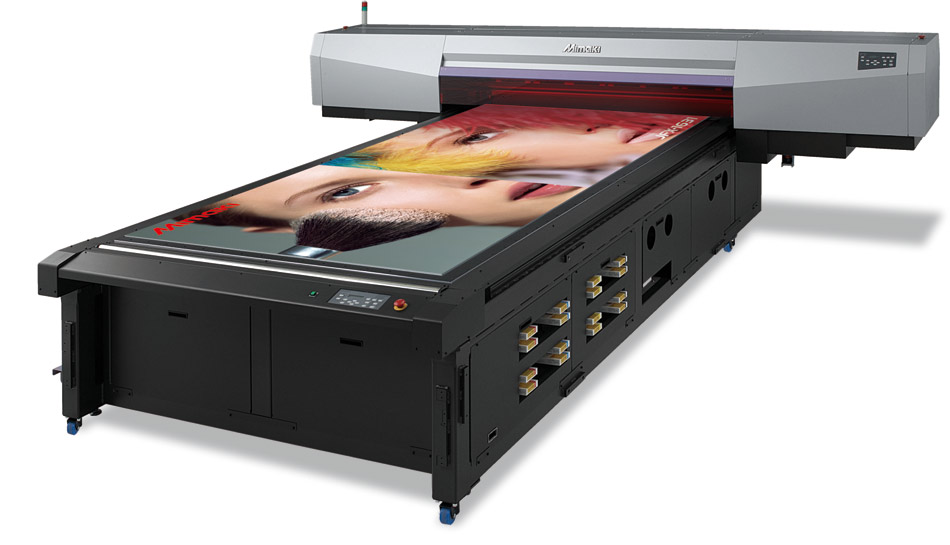

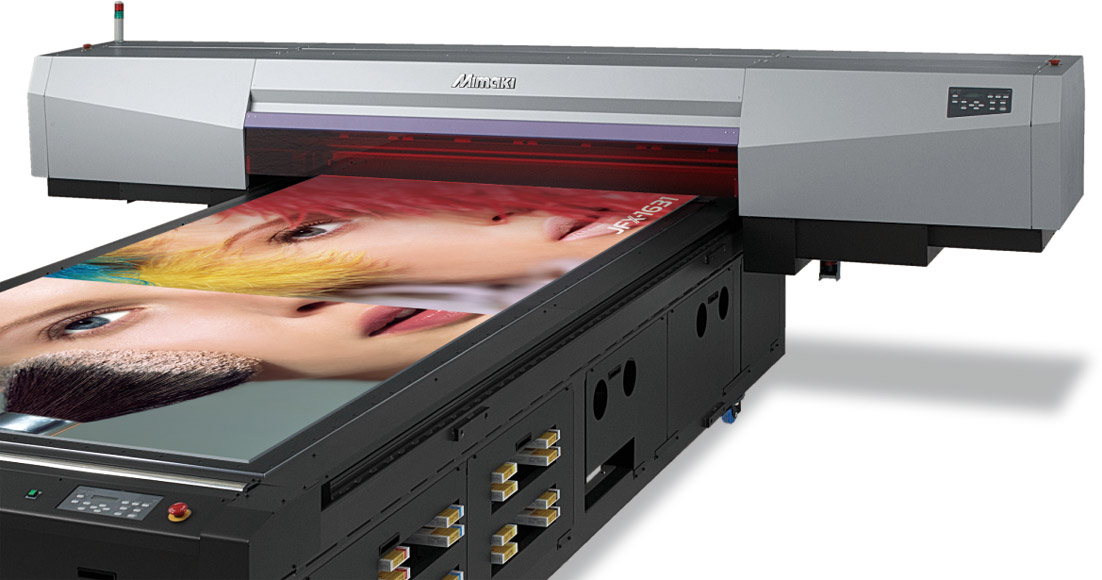

The Mimaki JFX is a large format, UV LED curable inkjet printers with the versatility to print on numerous uncoated substrates including corrugated plastics, acrylics and uneven or irregular media upto 50mm thick.

With a maximum resolution of 1200 x 1200 dpi, the JF Series is suitable for both sign graphics with a long viewing distance and POP displays. Print speeds of upto 13 sq/m per hour at great quality with vivid colours.

Using the standard white ink, JF Series can print bright, vibrant colour even on transparent media. There is also the choice of hard or soft inks offering greater flexibility for applications that require.

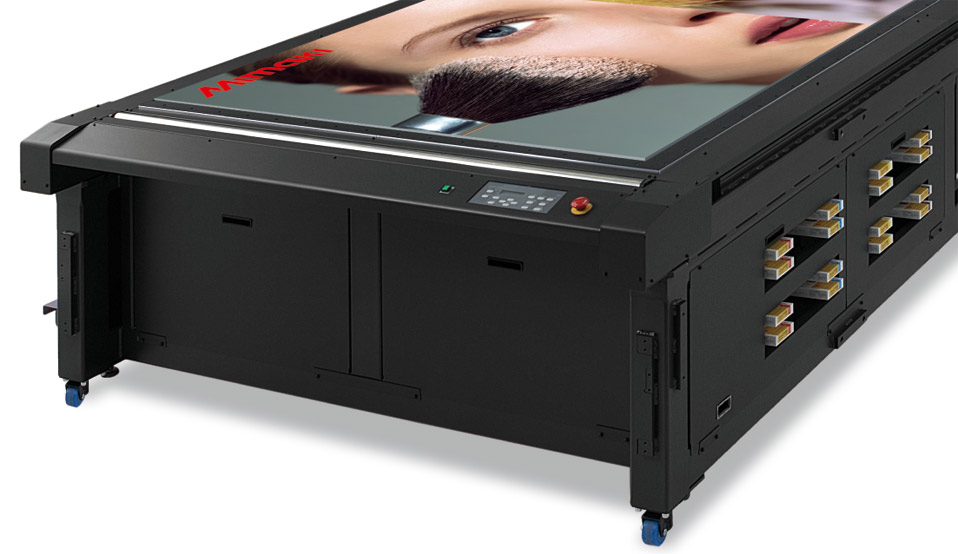

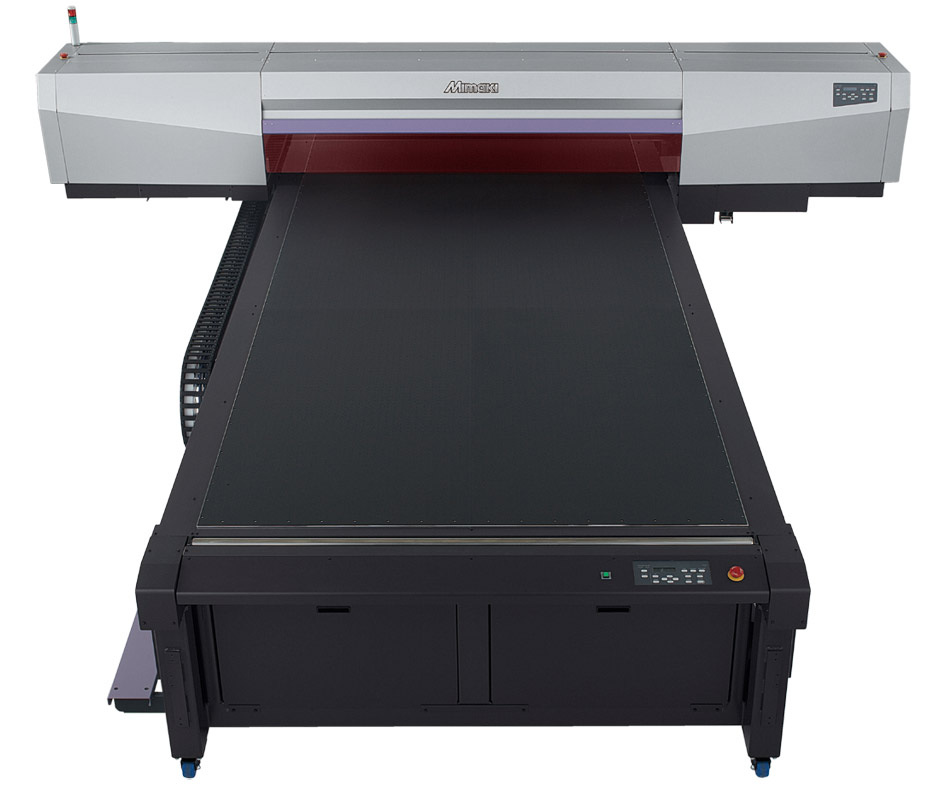

Equipped with dual UV LED lamps, for high speed, bi-directional printing. The 5ft by 10ft bed (1600 x 3100mm) is perfect for printing on one large piece or many smaller pieces, whatever your business requires.

  • In The Box
  • Specifications
  • Supplies
  • Roll Unit Specifications
  • JFXPlus icon

    The following items are supplied with the UJF-3042FX:

    • JFX Plus Printer
    • 1 x Full Set Pre-Fill Cartridges
    • 1 x full set of 16 x 600ml ink cartridges
    • JFX UV Cleaning kit with cleaning fluid
    • Mimaki RasterLink Pro V IP Software RIP (PC)
    • Operation & Maintenance Guides
    • One year onsite manufacturers parts and labour warranty

    Optional Items

    • Extended Warranty/Service Contract
    • Roll Feed Option
    • Ioniser Kit
    • Eco Cases (8 Pack)

  • Manufacturers Specifcations for the JFX Plus.

    ItemSpecifications
    JFX-1631 Plus
    JFX-1631 Plus
    Print Head
    On demand Piezo Head
    Print Resolution
    300x600 dpi, 450x600 dpi, 600x600 dpi, 600x1200 dpi, 1200x1200 dpi
    Ink Type
    TypeLH-100 hard UV ink (C/M/Y/K/W/CL)
    LF-200 fl exible UV ink (C/M/Y/K/W)
    Capacity
    600ml Ink Pack
    Maximum print width (W x D)
    1,602 x 3,100mm (63.1 x 122”)
    1,602 x 1,500 mm (63.1 x 59.1”)
    With Post Cure Unit
    1,602 x 2,700 mm (63.1 x 106.3”)
    1,602 x 1,100 mm (63.1 x 43.3”)
    Print Accuracy Absolute accuracy
    ± 0.3 mm (0.01 “) or ± 0.3 % from specifi ed print distance
    Repeatability
    ± 0.2 mm (0.01 “) or ± 0.1 % from specifi ed print distance
    Perpendicularity
    ± 0.5 mm / 500 mm (0.02 / 19.7”)
    Media Size (W x D)
    1,644 x 3,194 mm (64.7 x 125.7”)
    1,644 x 1,594 mm (64.7 x 62.8”)
    Thickness
    Max. 50 mm (2“)
    Weight
    Less than 50 kg (110.2 lbs.) (when the media is loaded evenly)
    Media table
    Air suction by vacuum
    Vacuum Area
    Vertically divided into 4 zones
    Vertically divided into 2 zones
    UV unit
    Equipped with UV Light Emitting Diodes
    Expected Life *1
    About 10,000 Hours
    Post Curing Unit UV Unit
    Equipped with fl uorescent UV tube lamp *2
    Expected Life *1
    About 1,000 Hours *3
    Power specifications
    1-phase : AC 200 - 240V, 50/60 Hz (power from main unit)
    Power consumption
    Less than 400 VA
    Dimensions/ Weight (W x D x H)
    1,980 mm x 185 mm x 300 mm / 13 kg (78 x 7.3 x 11.8” / 28.7 lbs.)
    Interface
    USB 2.0
    Applicable standard
    VCCI class A, CE Marking, CB Report, UL, RoHS Directive
    Power specifications
    AC 200 – 240 V, 50 / 60 Hz
    Power consumption
    Less than 2.0 kVA
    Operational environment Temperature
    15 – 30 °C (59 – 86 °F)
    Humidity
    35 – 65 % Rh
    Temperature accuracy
    18 – 25 °C (64 – 77 °F)
    Temperature gradient
    Less than ± 10 °C / h (18 °F)
    Dust
    Equivalent to normal office level
    levelDimensions (W x D x H)
    4,200 x 4,300 x 1,600 mm(165.4 x 169.3 x 63”)
    4,200 x 2,620 x 1,600 mm(165.4 x 103.1 x 63”)
    Weight
    1,613 kg (3,556 lbs.)
    1,313 kg (2,894.6 lbs.)
    • *1 Reference value. There is no guarantee as to the lifetime
    • *2 Post-curing unit is equipped with 3 fl uorescent UV tube lamps in one set.
    • *3 After about 1,000 hours of usage, illumination level declines by about 20%.
  • ItemColourCodeRemarks
    LF-200 Flexible UV Ink
    Cyan
    SPC-0591C
    600ml Ink Pack
    Magenta
    SPC-0591M
    Yellow
    SPC-0591Y
    Black
    SPC-0591K
    White
    SPC-0591W
    LH-100 Hard UV Ink
    Cyan
    SPC-0597C
    600ml Ink Pack
    Magenta
    SPC-0597M
    Yellow
    SPC-0597Y
    Black
    SPC-0597K
    White
    SPC-0597W
    Clear
    SPC-0597CL
    Eco Cartridge
    OPT-J0237
    8 pcs
    Cleaning Solution (For LF200 and LH-100)
    SPC-0606FS
    400ml ink cartridge
    UV Primer GM-1
    SPC-0541
    500ml
    Fluorescent UV Tube Lamp
    SPC-0690
    3 pcs
  • ItemSpecifications
    Carrier Systems
    Page to page
    Usable Media Width
    300 mm - 1,600 mm (11.8 - 63”)
    Thickness
    0.05 mm - 1.0 mm (0.002 - 0.04”)
    Weight
    Less than 50 kg
    Roll Outside Diameter
    Up to φ 200 mm (7.9”)
    Roll Inside Diameter
    3 inch
    Print Surface
    Inside / Outside Selectable
    Power Specifications
    1-phase: AC 200-240V, 50/60 Hz, (power from main unit)
    Power Consumption
    Less than 150 VA
    Dimensions
    Incl. JFX-1631plus
    (W x D x H)
    4,300 x 5,000 x 1,600 mm (Main + roll unit)
    (169.3 x 196.9 x 63”)
    Incl. JFX-1615plus
    (W x D x H)
    4,300 x 3,500 x 1,600 mm (Main + roll unit)
    (169.3 x 137.8 x 63”)
    Weight
    Incl. JFX-1631plus
    1,813 kg (Main 1,613 kg + Roll unit 200 kg)
    Incl. JFX-1631plus
    1,513 kg (Main 1,313 kg + Roll unit 200 kg)
