Mimaki CJV30 Series

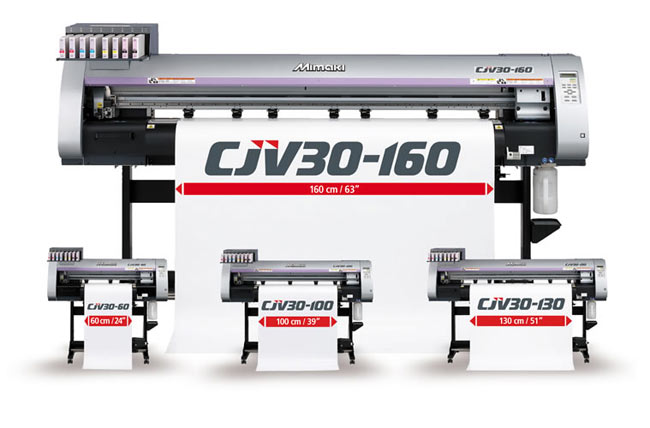

cjv30 header

Designed by uniting Mimaki's legendary state-of-the-art inkjet and cutting technologies, this range includes:

  • 24-inch (60cm) CJV30-60
  • 39-inch (100cm) CJV30-100
  • 54-inch (130cm) CJV30-130
  • 63-inch (160cm) CJV30-160

Configuration options are endless with 4 colour (CMYK), 6 colour (CMYK, Lc, Lm), 6 colour plus White (CMYK, Lc, Lm + White) or, 6 colour plus Metallic (CMYK, Lc, Lm +Metallic). There is also the choice of Mimaki SS21 solvent or ES3 Eco solvent inks.

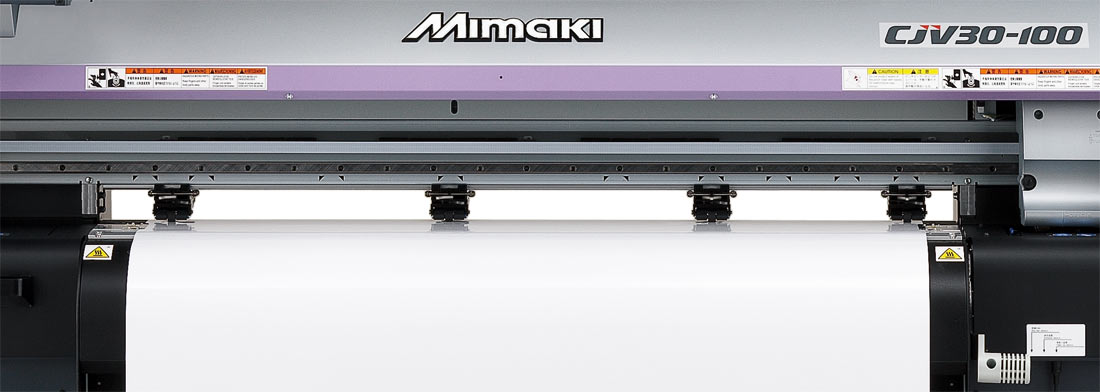

Limitations in office space and budget are not an issue with the choice to use Mimaki's sophisticated print and cut technology integrated at an affordable price. The Auto Media Clamp function, Continuous Crop Mark Detection, UISS (uninterrupted ink supply system), which provides unattended long-time continuous print and cut without an operator.

  • In The Box
  • Specifications
  • Supplies

  • CJV30 icon

    The following items are supplied with the UJF-3042FX:

    • CJV30 Series Printer
    • 8 x Pre-Fill Cartridges
    • 1 x full set of 8 ink cartridges
    • Roll Take-Up System
    • Solvent Cleaning kit with cleaning fluid
    • Mimaki RasterLink Pro V SG Software RIP (PC)
    • Mimaki FineCut v8 for Illustrator & CorelDRAW
    • Operation & Maintenance Guides
    • One year onsite manufacturers parts and labour warranty for CJV30-60 & CJV30-100
    • Two year onsite manufacturers parts and labour warranty for CJV30-130 & CJV30-160

    Optional Items

    • Extended Warranty/Service Contract
    • Drying & Exhaust Unit
    • Air Filtration System
    • Static Cling Prevention Net
    • Front Cover
    • Sheet Basket
    • Mimaki SS21 Bulk Ink System

  • Manufacturers Specifcations for the CJV30 Series.

    ItemCJV30-60CJV30-100CJV30-130CJV30-160
    Max Print/Cut Width
    610mm (24")
    1020mm (40.1")
    1361mm (53.5")
    1610mm (63.3")
    Print Resolution
    540dpi, 720dpi, 1440 dpi

    Print Modes (scan x feed)
    540 x 720 dpi, 540 x 900 dpi, 540 x 1080 dpi, 720 x 540 dpi, 720 x 720 dpi,
    720 x 1080 dpi, 720 x 1440 dpi, 1440 x 1440 dpi
    Ink Type
    Solvent ink: SS21 ink, ES3 ink
    Max. Ink Capacity
    4-colour mode: 440 cc x 2 = 880 cc per colour
    6-colour mode: 440 cc x 1 = 440 cc per colour
    Max. Media Width
    620 mm (24.4”)
    1030 mm (40,1”)
    1371 mm (53.9”)
    1620 mm (63.7”)
    Max. Media Thickness
    Less than 1.0 mm
    Max. Media Roll Weight
    Less than 25 kg (55 Ibs.)
    Max. Media Diameter
    Inside: 2 inch, 3 inch I Outside: Less than; ø 180 mm (7.1”)
    Maximum cutting speed
    30 cm:11.8”/s (42 cm:16.5”/s at the angle of 45º)
    Cutting force
    10-350g
    Applicable tools
    Cutter, Water based ball-point pen, Oil based ball-point pen
    Media cutting
    Cutting in Y direction by cutter on the head

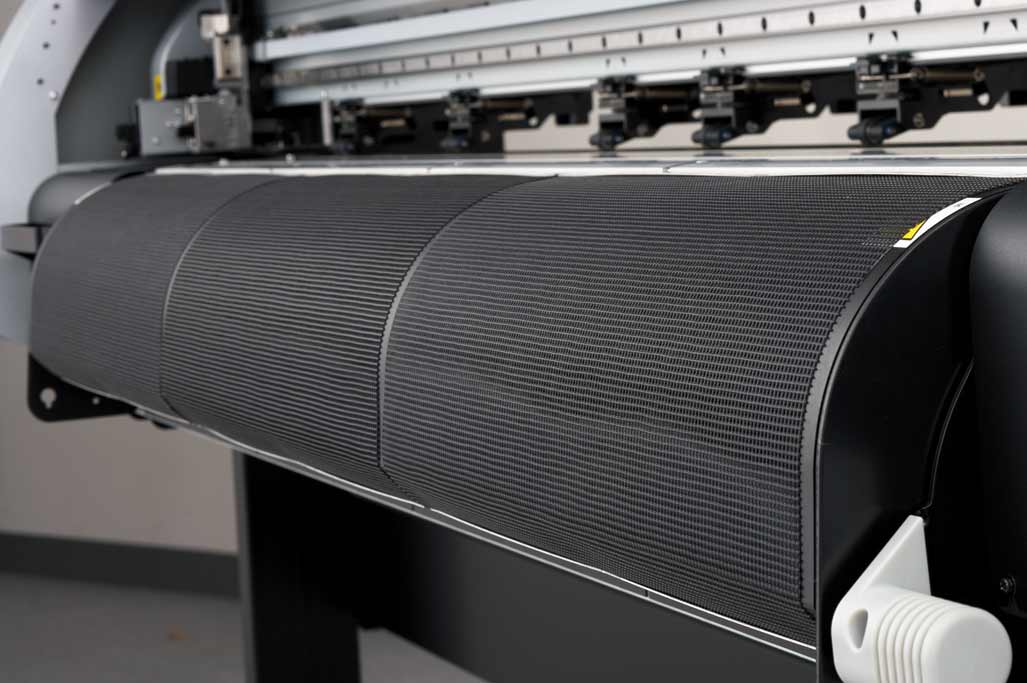

    Media heater
    Pre/print/post heater
    Media take-up device
    Roll take-up device (Standard), inside/outside selectable
    Languages
    MRL-III,MGL-lIc2
    Interface
    USB 2.0
    Applicable standard
    VCCI class A, FCC class A, UL60950, CE Marking
    (EMC directive, low voltage direclive), CB Report
    Power
    AC100V-240V, Less than 1380VA
    Operating environment
    20ºC -35ºC, 35-65% Rh (No condensation)
    Dimensions (WxDxH)
    1524 x 739 x
    1424 mm
    (60”x 29.1” x 56.0”)
    1934 x 739 x
    1424 mm
    (60”x 29.1” x 56.0”)
    2289 x 739 x
    1424 mm
    (90.1”x 29.1”x 56.0”)
    2538 x 739 x
    1424 mm
    (99.9”x 29.1”x 56.0”)
    Weight (max.)
    110 kg (242 Ibs.)
    130 kg (286 Ibs.)
    145 kg (319 Ibs.)
    160 kg (352 Ibs.)
  • Item
    		Pack SizeProduct Code
    SS21 Solvent Ink
    440cc
    SPC-0501 C/Y/M/K/Lc/Lm
    White Ink
    220cc
    SPC-0504W
    ES3 Eco Solvent Ink
    440cc
    SPC-0440 C/Y/M/K/Lc/Lm
    Wiperkit 33S
    10 pcs
    SPA-0314
    Waste Ink Bottle 2l
    1 pc
    SPA-0134
    Cutter Blade Assembly
    1 pc
    SPA-0107
    MS Cleaning Cartridge
    220cc
    SPC-0294
    Cutter Holder (Standard Accessory)
    1 pc
    SPA-0001
    Cutter Holder
    1 pc
    SPA-0090
    Standard Vinyl Blade
    3 pcs
    SPB-0030
    Blade For Vinyl & Paper
    3 pcs
    SPB-0001
    Blade For Small Detail
    3 pcs
    SPB-0003
    Blade For Reflective Media
    2 pc
    SPB-0006
    Blade For Fluorescent Media
    3 pcs
    SPB-0007

    SS21 ink. This fast drying solvent ink enables immediate cutting after printing. Of course, the ink will not peel off during the cutting.

    ES3 ink. Virtually odourless and user-friendly ink that does not require any special ventilation

    White ink (SS21 ink). Mimaki’s exclusive “white ink overlay print” allows for simultaneous white and full colour printing and creates a beautiful  nish with accurate overlay.
