Agfa Anapurna M4F

M4F header

The Anapurna M4F makes high quality UV printing available at an affordable cost.

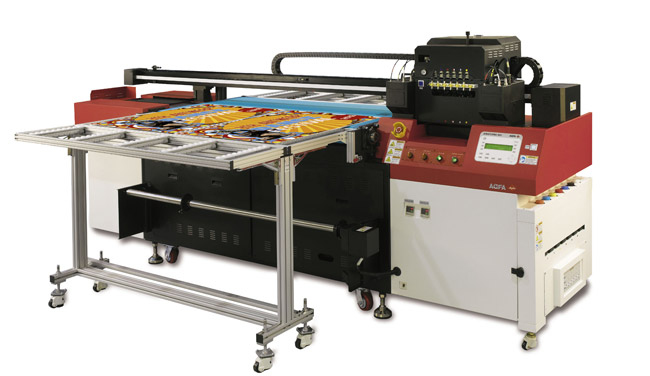

Introducting the Agfa Anapurna M4F

The M4F is a cost-effective UV-inkjet printing solution that delivers exceptional results for indoor and outdoor applications on uncoated rigid and roll medias such as foamex, foamboard, corrugated board, rigid plastic, exhibition panels, stage graphics, advertising panels, film, vinyl, paper, canvas and banners. There is no mounting, no waiting and no remakes. It uses UV ink for faster drying, material versatility and a wide colour gamut.

Key Features

A robust and well engineered machine fit for higher work loads, the Anapurna M4F is designed to produce quality output in any print-for-pay industry environment.

Anapurna M4F has a zoned vacuum table, automated media registration, smooth media transport drive and has a design concept similar to those commonly used in higher priced machines. Measured at optimum print shuttle speed, the system is capable of producing good quality output.

Print Quality

The Agfa Anapurna M4F inks have a large colour gamut, high colour vibrancy and thanks to a good ink adhesion high image longevity and outdoor resistance are guaranteed. The four 14 picolitre heads guarantee printing of good solids, fine text reproduction, good tonal rendering and low ink consumption.

With it's high application versatility and the affordable capital investment, the Anapurna M4F is the ideal UV printer when print quality and production capabilities are a must whilst retaining outstanding investment value.

  • Productivity
    8p uni - 720 x 1440 dpi - 4 m²/h
    8p bi - 720 x 1440 dpi - 7.5 m²/h
    4p uni - 720 x 720 dpi - 8.1 m²/h
    4p bi - 720 x 720 dpi - 13.8 m²/h
    Dimensions
    350 x 152 x 160 cm
    Weight
    620 KG
    Electricity
    Single-phase
    UV Curing
    Lamps can be set to “half” or “full”
    Network
    Ethernet / connectors: RJ45 UTP, 1GBaseT
    System Integration
    Wasatch SoftRIP Agfa Edition
    Ready to use : Anapurna M1600 media/ink profiles available.
    • Perfect fit for Digital Printers, Poster printers and Mid-Size Graphic Screen printers
    • Good quality poster output at 13.8 m²/h (4pass printing)
    • Good solids and signs in 8 pass printing
    • Robust Engineered UV Printer designed for professional use.
    • Versatile because flatbed as well as roll to roll media capable.
    • Roll to roll system is optional
    • Robustly Engineered
    • Reinforced beam Automated
    • Roll to roll option is optional
    • Divided vacuum table, 2 parts
    • 1,5kW ring blower for strong vacuum situated in the engine for less noise
    • Accurate Media transport/feed
    • Media guiding tool mounted on media table - guider for rigids
    • Network connection
    • Connector for winder/ unwinder
    • Up to 158 cm media width
    • Up to 156 cm print width
    • Borderless printing Up to 152 cm media width
    • Dual board printing - Min. size: A3, landscape
    • Media thickness up to 45 mm
    • Two rigid tables (rear & front)
    • Optional: extra table set - Extends max length 2.5m
    • Roll-to-Roll: Max. roll weight: 50 kg Max. roll diameter: 36 cm
    • Capable of reproducing ISO 12647 in 8 pass and 4 pass DS (double strike)
    • Text Quality - Positive: 4 point Negative: 6 point
    • 4 pass: poster quality mode for images and text No imaging artefacts visible at 1.5 m viewing distance
    • 8 pass: highest quality mode for vector, signs, solids, images and text
    • 8p uni - 720 x 1440 dpi - 4 m²/h
    • 8p bi - 720 x 1440 dpi - 7.5 m²/h
    • 4p uni - 720 x 720 dpi - 8.1 m²/h
    • 4p bi - 720 x 720 dpi - 13.8 m²/h
    • Uniform gloss
    • Borderless and dual board printing
